Commscope 760178129 | 1592A BLK C6A 4/23 F/UTP R1000
The CommScope 1592A Category 6A F/UTP Outdoor Cable is a premium shielded Ethernet cable designed for high-speed outdoor networking applications. Featuring 23 AWG solid bare copper conductors, an aluminum foil shield, and a UV-resistant polyethylene (PE) jacket, it delivers exceptional data transmission up to 500 MHz while protecting against electromagnetic interference (EMI). Ideal for enterprise networks, IP surveillance, smart buildings, and outdoor structured cabling systems.

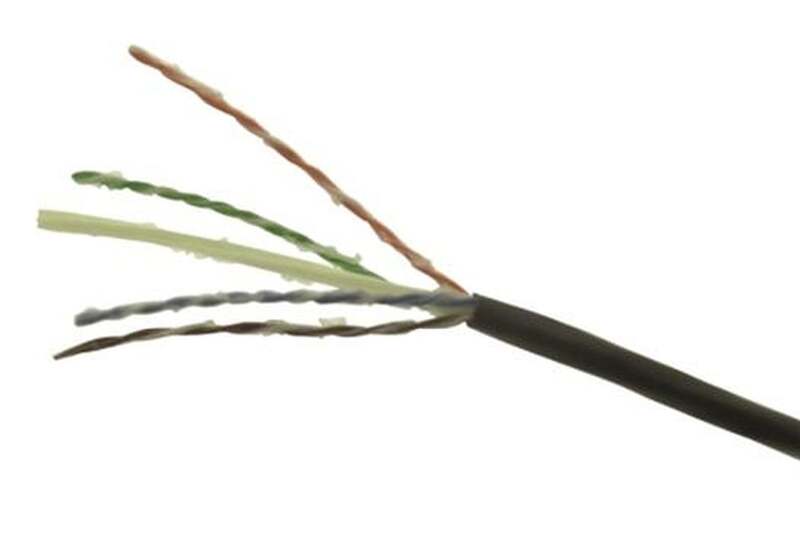

CommScope 1592A Category 6A F/UTP Outdoor Cable
The CommScope 1592A Category 6A F/UTP Outdoor Cable is engineered to meet the demanding requirements of modern high-speed Ethernet networks. Designed for outdoor structured cabling, this cable provides outstanding performance, durability, and EMI protection, making it an ideal choice for commercial, industrial, and campus networking applications.
Specification | Details |
Product Name | CommScope 1592A Category 6A F/UTP Outdoor Cable |
Brand | CommScope |
Cable Category | Category 6A |
Cable Type | F/UTP (Foil Shielded Twisted Pair) |
Conductor Material | Solid Bare Copper |
Conductor Size | 23 AWG |
Number of Conductors | 8 |
Number of Pairs | 4 Pairs |
Shield Material | Aluminum/Polyester Tape |
Drain Wire | Tinned Copper |
Jacket Material | UV-Resistant Polyethylene (PE) |
Jacket Colour | Black |
Cable Length | 305 m (1000 ft) |
Operating Frequency | Up to 500 MHz |
Operating Voltage | 80 V |
Safety Voltage Rating | 300 V |
Nominal Velocity of Propagation | 62% |
Installation Temperature | -30°C to +70°C |
Operating Temperature | -40°C to +70°C |
Outdoor Rating | UV Resistant & Direct Burial |
PoE Support | IEEE 802.3bt Type 4 (PoE++) |
Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class EA, RoHS |
