B3 C1037 (Equivalent to 7965E) (4 Pair 23 AWG UNSHIELDED CAT 6 CABLE [305MTR/ROLL])
Non-returnable
AED648.00
The B3 Category 6 (CAT6) Data Cable is a high-performance networking cable designed for reliable Ethernet, LAN, and video transmission. Manufactured with 23 AWG solid plain copper conductors, it is available in UTP and FTP configurations with PVC, HFFR/LSZH, or PE sheath options. The cable delivers excellent data transmission, low signal loss, and dependable performance for commercial, industrial, and smart building network installations.
Technical Datasheet
https://workdrive.zoho.com/file/kxse6fc8eed18f4b84d78bf0ef8355d6d3a20 Choose Quantity
Product Details

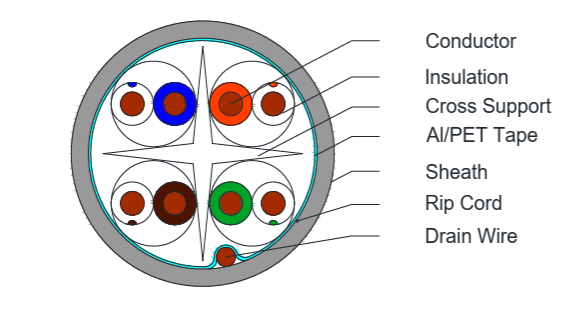

B3 Category 6 (CAT6) Data Cable
The B3 Category 6 (CAT6) Data Cable is engineered to support high-speed network communication in commercial, industrial, and intelligent building applications. Designed to meet modern networking requirements, it provides stable performance for Ethernet, Local Area Networks (LAN), IP-based systems, and video transmission.
Manufactured with 23 AWG solid plain copper conductors, the cable delivers excellent electrical conductivity and consistent signal quality. Each twisted pair is insulated with solid polyethylene to minimize crosstalk and signal attenuation, ensuring reliable network performance over extended distances.
Specification | Details |
Product Name | B3 Category 6 (CAT6) Data Cable |
Brand | B3 International |
Cable Category | Category 6 (CAT6) |
Cable Type | UTP / FTP |
Conductor Material | Solid Plain Copper |
Conductor Size | 23 AWG |
Number of Pairs | 4 Twisted Pairs |
Insulation | Solid Polyethylene (PE) |
Shielding | UTP or Aluminium/Polyester Foil (FTP) |
Drain Wire | Tinned Copper (FTP Version) |
Sheath Options | PVC, HFFR/LSZH, PE |
Standard Length | 305 metres |
Operating Voltage | 300 V RMS |
Operating Temperature | -20°C to +60°C |
Overall Diameter | 6.1 mm (UTP), 7.2 mm (FTP) |
Standards | ANSI/TIA/EIA-568-C.2, EN 50290-2, ISO/IEC 11801, RoHS |
