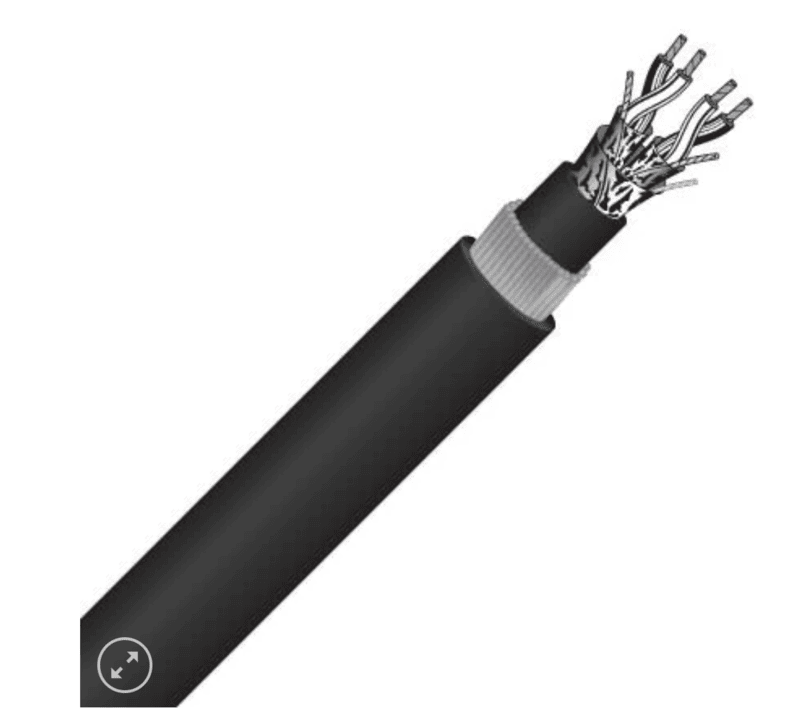

MESC 2Px1.5SQMM LSZH Ar Instrumentation Cable
Non-returnable
AED16.95 AED18.10
The MESC 2 Pair x 1.5 Sq.mm LSZH Armoured Instrumentation Cable is a premium fire-resistant instrumentation cable designed for critical industrial control and communication systems. Manufactured with stranded plain copper conductors, MICA tape, XLPE insulation, individual and overall aluminium/Mylar shielding, galvanized steel wire armour (SWA), and a Low Smoke Zero Halogen (LSZH) outer sheath, it delivers reliable signal transmission, excellent EMI protection, and enhanced fire safety for demanding industrial environments.
Choose Quantity
Product Details
MESC 2 Pair x 1.5 Sq.mm LSZH Armoured Instrumentation Cable
The MESC 2 Pair x 1.5 Sq.mm LSZH Armoured Instrumentation Cable is specifically designed for mission-critical instrumentation and process control applications where signal integrity, fire resistance, and mechanical protection are essential. It is an ideal solution for oil & gas facilities, petrochemical plants, power generation, industrial automation, and infrastructure projects.
Specification | Details |
Product Name | MESC 2 Pair x 1.5 Sq.mm LSZH Armoured Instrumentation Cable |
Brand | MESC |
Cable Type | Fire Resistant Armoured Instrumentation Cable |
Number of Pairs | 2 Pairs |
Conductor Size | 1.5 Sq.mm |
Conductor Material | Stranded Annealed Plain Copper (Class 2) |
Insulation | MICA Tape + XLPE |
Individual Shield | Aluminium/Mylar Tape with 0.5 mm² Tinned Copper Drain Wire |
Overall Shield | Aluminium/Mylar Tape |
Inner Sheath | LSZH Thermoplastic |
Armour | Galvanized Steel Wire Armour (SWA) |
Outer Sheath | LSZH Thermoplastic |
Rated Voltage | 500 V |
Operating Temperature | -20°C to +90°C |
Installation Temperature | -5°C to +50°C |
Fire Performance | IEC 60331 |
Flame Retardant | IEC 60332-3 Category A |
Standard | BS EN 50288-7 |
